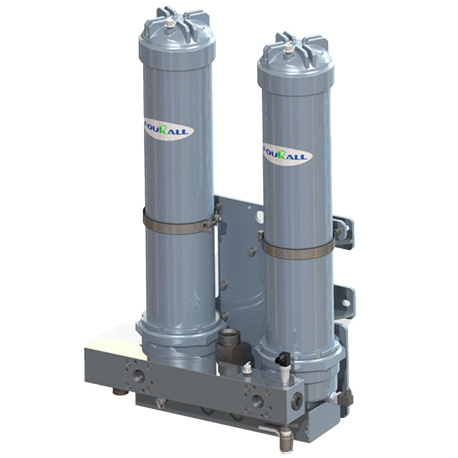

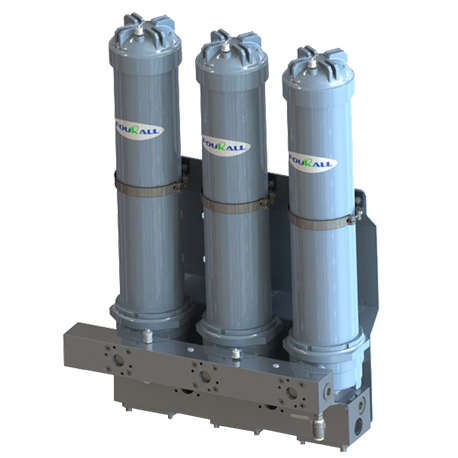

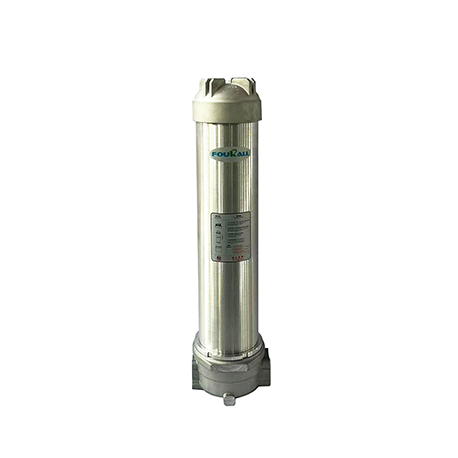

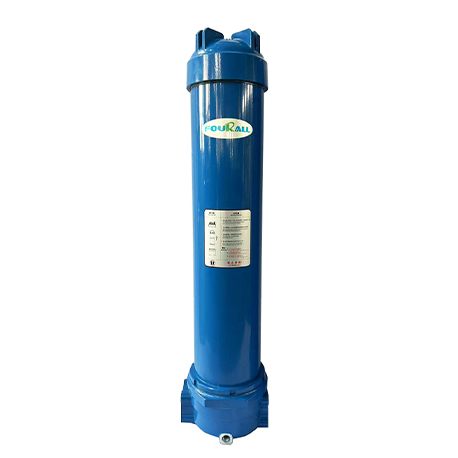

Industrial Filter For Wind Turbine Application
- High filtration precision;
- Lightweight and simple structure;
- Low pressure drop, high pressure resistance;
- Wide temperature adaptability, suitable for low-viscosity and high-viscosity oil circulation;
- High flow rate, with a single unit capable of reaching a maximum flow rate of 1200L/min.
Description
|
Maximum flow rate: |
1200L/min（VG30） |
|
Design pressure: |
32bar |
|
Port size : |
11/2’’、 2’’、 21/2’’ |
|
Maximum working pressure : |
25bar |
|
Burst pressure: |
90bar |
|
Material : |
Aluminum alloy: Base + Cylinder + Top cove |
Product Details:
Function and Characteristic:
The filter consists of an aluminum alloy base, housing, cover, filter element, and seals. It has wide temperature adaptability, suitable for both low-viscosity and high-viscosity oil circulation. It features high flow capacity, low pressure drop, and high filtration precision. The design is lightweight and simple in structure.
Product specification and models:
FA/WD series
Applied range:
Industrial Hydraulic System, Lubrication System.
