Industrial Lubrication System

Home >  Main Products >  Lubrication system >  Industrial Lubrication System

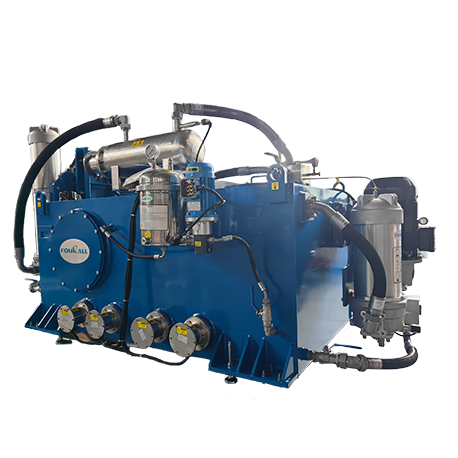

Industrial Lubrication System


  • With standby oil pump;
  • Employing multitube filters;
  • Low resistance, and ease of maintenance;
  • Utilizing a tube-type oil cooler provides excellent cooling efficiency;
  • Equipped with a dashboard and electrical control box for easy observation of operating parameters, enabling automatic control and fault alarms.
Description

Flow range:

0~60m³/ h

Lubricating oil supply pressure:

0.2~0.4MPa

Heat exchange area:

0.6~80

Chilled water temperature:

32

Oil supply temperature:

38~42

Working medium:

VG320

Filtration accuracy for filter element:

10μm  (Optional)

Filter element filtration area:

0.05~2.2



Product Details:

Function & Characteristic:

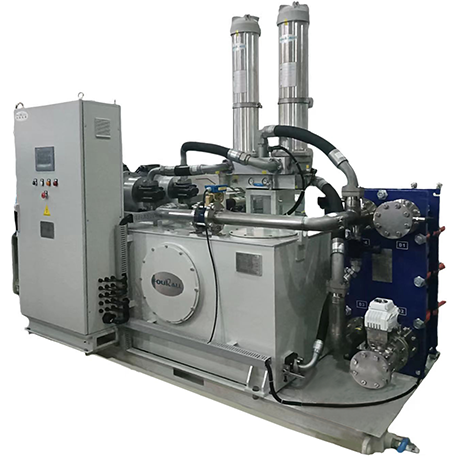

The system utilizes the Fourall patented long-life helical gear pump, with dual oil pumps for redundancy, ensuring high reliability and low noise, and continuous oil supply to lubrication points. The dual-cylinder filter provides strong filtration capability and can adapt to lubricants with higher viscosity, positioned before the cooler to enhance filtration efficiency. With the dual-cylinder filter, it's possible to switch to the backup filter element without stopping, and filter elements can be removed for cleaning or replacement without interrupting operation. It employs either tubular or plate-type oil coolers for efficient cooling, low resistance, and easy maintenance. The return oil is filtered magnetically to remove iron particles from the pump, ensuring oil cleanliness. Equipped with a dashboard and control box for easy monitoring of operational parameters, it can also achieve automatic control and provide accident alarms.



Product specification and models:

FA-XYZ series



Application:

Applicable for circulating lubrication in machinery and equipment across industries such as cement, metallurgy, rolling, mining, energy, light industry, transportation, petrochemicals, and power generation. It provides real-time monitoring of lubricating oil pressure, flow rate, temperature, and cleanliness.
