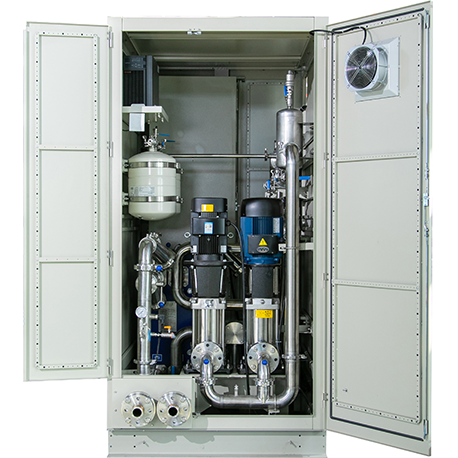

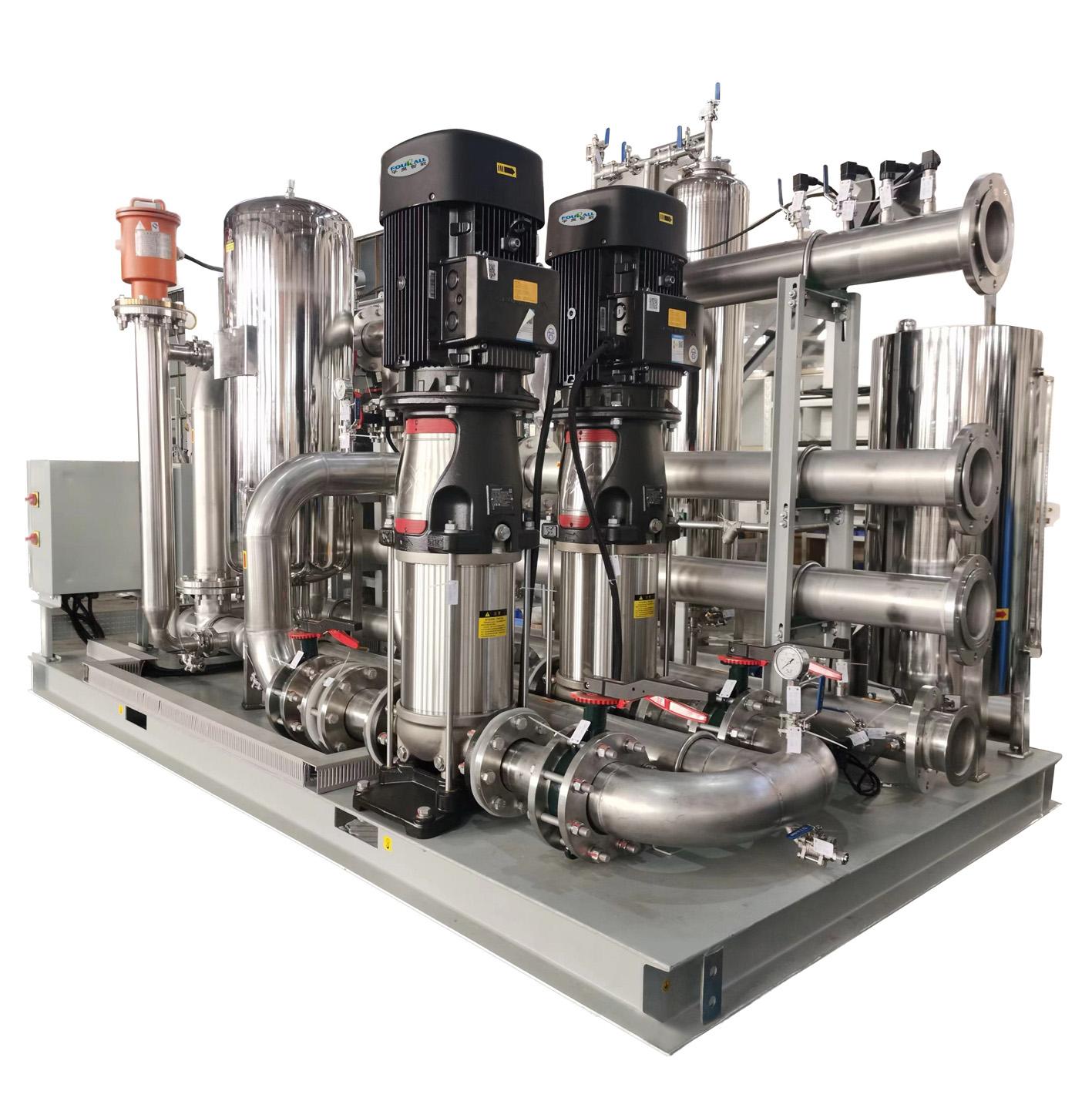

Pure Water Cooling System
- High reliability and stable system operation;
- Capable of centralized control and monitoring;
- Large flow capacity, simple structure, high heat dissipation performance, and easy maintenance;
- Excellent deionized water treatment technology and degassing performance to ensure constant pressure;
- Designed for long-term stable operation in harsh environments such as extreme cold, sandstorms, salt fog, and high temperature and humidity.
Description
|
Water supply pressure: |
0~0.6MPa |
|
Water supply temperature: |
10~60℃ |
|
Medium conductivity: |
≤0.3μS/cm |
|
Cooling method: |
Air-cooled; water-cooled |
|
Working medium: |
Deionized water + ethylene glycol mixture |
Product Details:
Function & Characteristic:
The pure water cooling system features a fully stainless steel closed-loop circulation with a dual-pump redundancy design, large flow capacity, automatic pre-charge pressure degassing, electric heating, and either forced air cooling or water cooling methods. It offers minimal ion release, using deionized high-purity water as the cooling medium with a conductivity of less than 0.3μS/cm, ensuring high reliability and stable system operation. The control system includes multiple protection features, passive alarm terminals, and remote control terminals, enabling precise regulation of cooling water temperature, flow rate, and water quality. It integrates with various operating modes and upper-level systems for centralized control, communication, and monitoring.
The system is modular, with a simple, compact structure, making it easy to operate and maintain. It is designed to handle frequent switching on and off, as well as vibrations, and can operate reliably in harsh environments such as extreme cold, sandstorms, salt fog, high temperatures, and high humidity for extended periods.
Product specification and models:
PO series
Application:
Applicable for pure water cooling of power equipment such as SVG , SVC , converters, and medium to high-voltage frequency converters in industries including AC/DC power transmission, electrical drive, oil and gas transportation, and special power sectors.
