Special Fluid Equipment For Oil Supply Systems

Home >  Main Products >  Lubrication system >  Special Fluid Equipment For Oil Supply Systems

Special Fluid Equipment For Oil Supply Systems


  • Stable oil supply pressure and precise pressure control;
  • High-speed emergency shut-off function to prevent safety accidents;
  • Each oil supply outlet is equipped with a check valve to prevent oil leakage;
  • Fully customized, non-standard design to precisely meet the functional and parameter requirements of different industries and operating conditions.
Description

Application conditions:

Installed inside the workshop building, avoid exposure to sunlight and rain.

Outdoor conditions:

No vibration, no corrosive gas, no open flame, no explosion, non-open use.

Explosion-proof rating:

Exd II T4

Corrosion resistance rating:

Customized according to customer requirements.

Flow rate range:

0~60m³/h

Oil supply temperature:

25~120

Oil supply pressure:

0~8MPa

Working medium:

Aviation kerosene, fuel oil

Filter element filtration accuracy:

10μm

Cleanliness of output fluid:

ISO4406 -/15/12



Product Details:

Function:

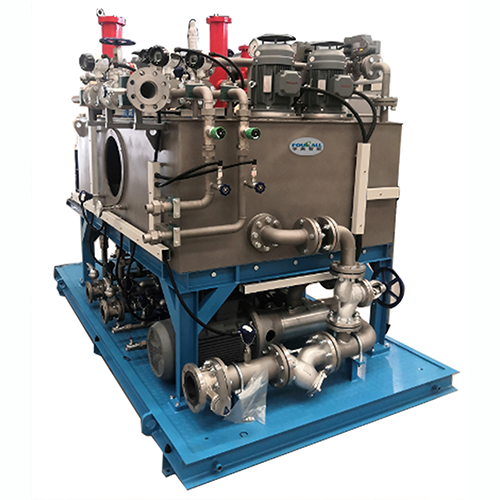

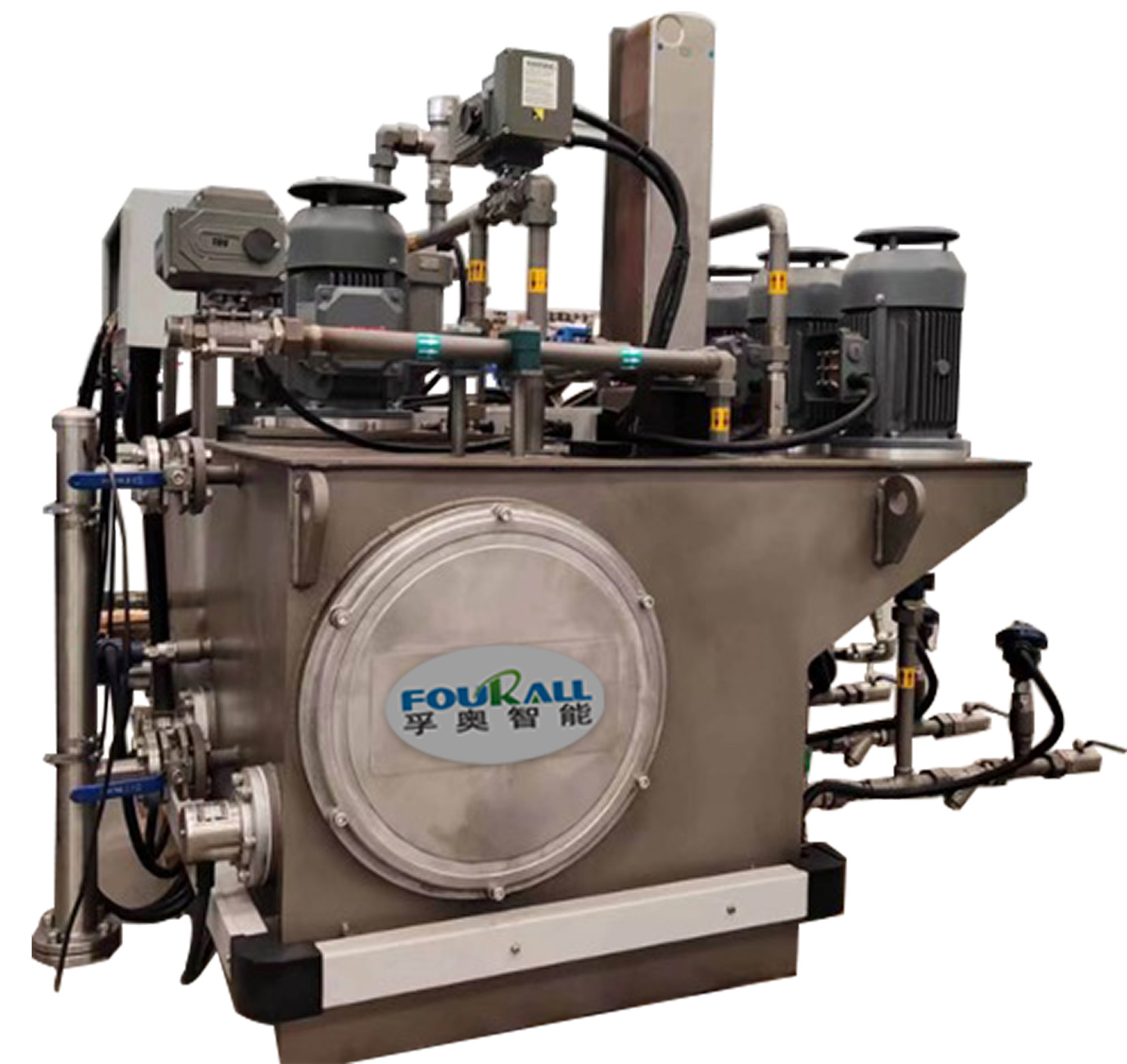

It mainly consists of a chassis, oil supply pump assembly, suction oil filter, supply oil filter, pressure transmitter, safety valve, platinum resistance thermometer, thermometer, pipe fittings, and other instruments.



Characteristic:

The pump supply line is equipped with a safety valve set at the maximum system pressure setting, ensuring precise control of system pressure to maintain stable oil supply pressure. The pump outlet pipe directly returns to the suction pipe, with one-way valves installed at each outlet of the drain pipes. A switch ball valve is installed on the drain pipe manifold to prevent excessive pressure on the pump housing during extrusion-type oil supply, preventing oil leakage from the pump shaft seal. Emergency shut-off valves (electric or pneumatic) are installed at the refueling port of the levering oil station and the engine inlet, with a required cut-off time of less than 0.5 seconds, to prevent the occurrence of safety accidents and provide protection in case of emergency situations.

Develop fully customized, non-standard solutions based on customer application needs to more precisely meet the functional and parameter requirements of different industries and operating conditions.



Product specification and models:

FA-LU series



Application:

Aviation Kerosene Fuel Supply System for Engine Test Bench.

The aviation kerosene fuel supply system primarily provides kerosene from the storage tank to the test engine after undergoing filtration, pressurization, regulation, and measurement.
