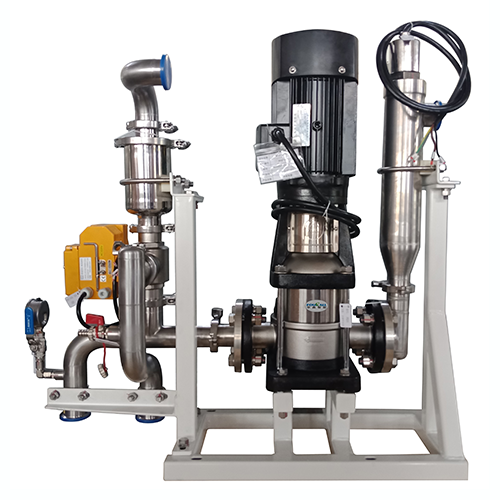

Water Cooling System For Wind Turbine Application
- Simple structure;
- Modular integration;
- Highly convenient and efficient for upkeep;
- High degree of component standardization.
Description
|
Water supply pressure: |
0~0.6MPa |
|
Flow range: |
0~90m³/h |
|
Heat dissipation power: |
0~600kw |
|
Working medium: |
Antifreeze |
|
Design life: |
20 years |
Product Details:
Function and Characteristic:
The system is used for heat dissipation and cooling of equipment such as generators, gearboxes, frequency converters, inverters, and cabin environmental control in wind turbine generator units. It employs a closed-loop circulation system with automatic pressure pre-charge and air exhaust. By monitoring system pressure and temperature, it ensures the continuous and stable operation of wind turbine units. The system features a simple structure, modular integration, high degree of component standardization, and convenient maintenance. Its cooling modules include forced cooling, natural air cooling, and low-noise cooling options.
Product specification and models:
WD-CO series
Application:
Applicable for water cooling of high-speed gearboxes, generators, frequency converters, and transformers in the wind power industry; suitable for wind turbine generator units with specifications ranging from 750 KW ~22 MW.
