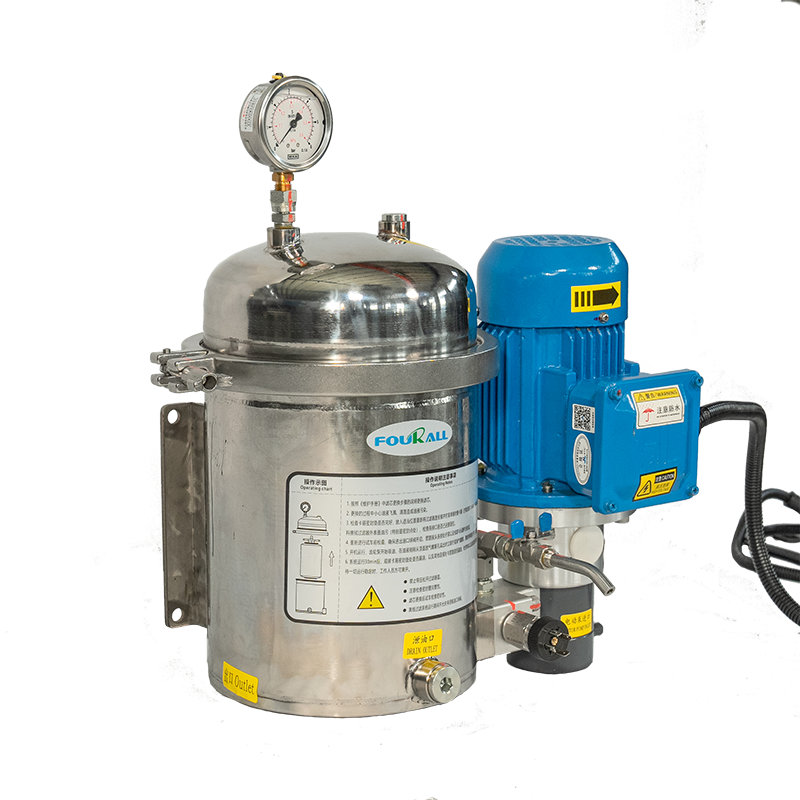

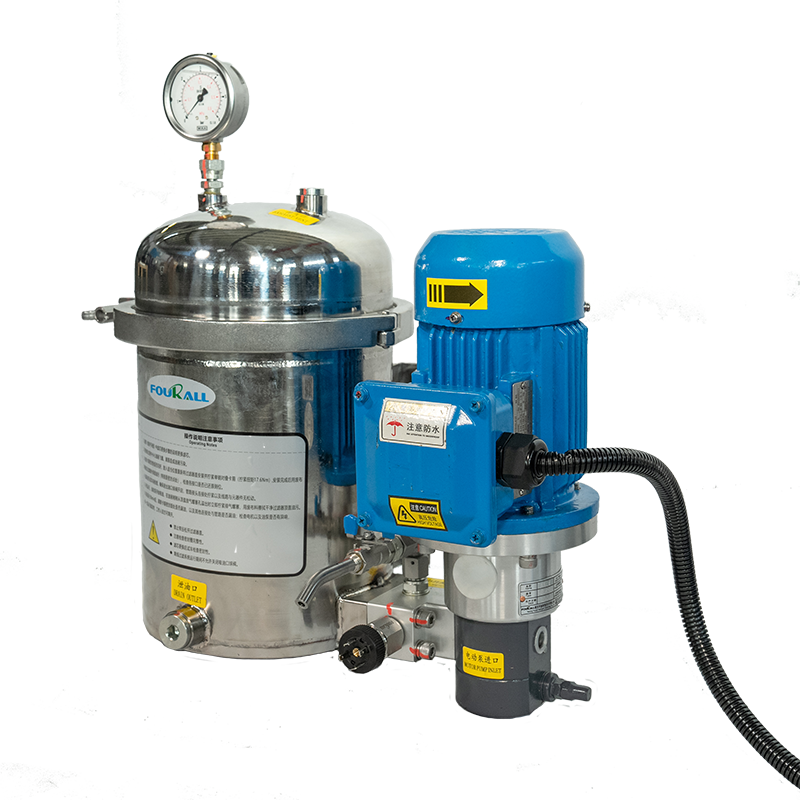

Off-line Bypass Filtration Unit

Compatible and interchangeable with other brands;
Aanalyze the performance and cleanliness of the lubricant in real time;
Equipped with built-in safety protection function, equipped with overpressure alarm to remind to replace the filter element;
Offline filtration unit has the ability to quickly filter out particles larger than 3um in one filtration, and the filtration efficiency is improved β 3＞100;
Batch supply to meet the needs of Chinese wind turbine mainframe clients, with over 5,000 systems operational across various wind farms for nearly 5 years.

Description

Is there a problem,<br>Please contact us to serve you!

Is there a problem,
Please contact us to serve you!

[email protected]

Description

The offline filtering device integrated with the advanced remote lubrication monitoring system has a high-precision filtering effect and can effectively remove water in the oil. At the same time, it can remotely collect, transmit, monitor, analyze, and make expert decisions. It can monitor the working status of the gearbox lubricant in real time, analyze the performance and cleanliness of the lubricant in real time, and accurately predict the replacement cycle of the lubricant in real time. This subverts the traditional maintenance method. Losses caused by traditional remedial repairs.

	<3MW	3-5MW	>5MW
Type	FA-WD/ LU-HU15/25	FA-WD/ LU-HU27/27	FA-WD/ LU-HU27/108
Carrying capacity	1.5L	4L	16L
Water absorbing capacity	0.75L	2L	8L
Filtration accuracy	3㎛	3㎛	3㎛
Main customers	CRRC windpower, CSIC,Shanghai Electric,Dazhong gearbox,Huaneng,Datang, etc.
